Description
The Atlas® alignment lift has a lifting height of over seven feet so that it may be floor mounted or recessed if the customer decides on a flush mount installation. The full frame under the scissor lift provides for maximum stability. The extra long 53″ long approach ramps make it easy to load low riding vehicles.

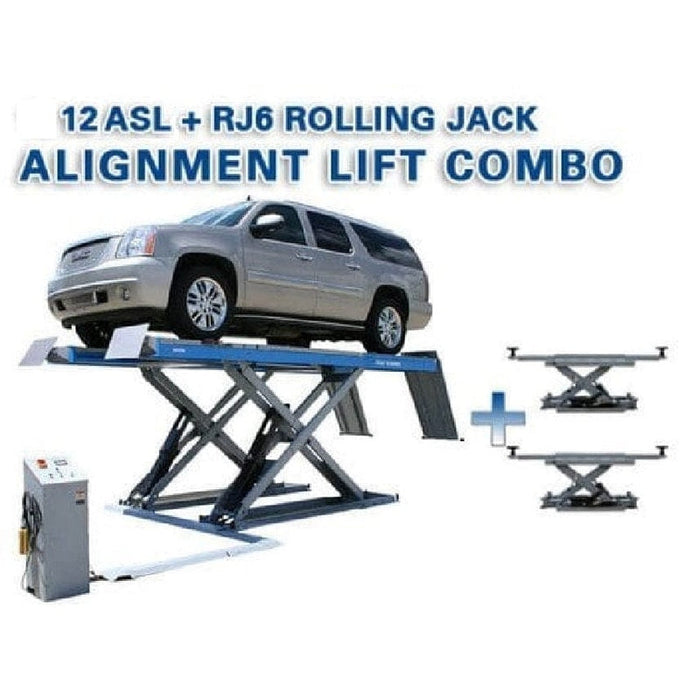

Quality workmanship, ease of operation, a durable powder coat finish and the lowest prices in the Industry makes the Atlas® 12ASL 12,000 alignment scissor lift the perfect choice for the demanding and discriminating shop owner.
Worried about bay space? An Atlas Alignment System allows the customer to utilize a minimum amount of space and still be able to align the smallest foreign car all the way up to a one ton dual rear wheel pickup truck.
Welded rails on the inside of the runways are standard on all lifts, allowing the bundled Atlas® RJ-6 (6,000 lbs. capacity) air/hydraulic rolling jack system on his Atlas® alignment scissor lift. The Atlas® RJ-6 is designed and engineered to operate on “delivered” air pressure of between 70-105 PSI.
Features
12ASL
- 12,000 LB. Capacity
- Commercial Grade
- Scissor Alignment Lift
- Built in Slip Plates and Alignment Turntables Included
- Turntable Covers Included
- Open Center Design for Easy Access
- Air-Operated Single Point Lock Release (External Air Supply Required)
- Airline Kit Included
- Rear Cross Beam for Extra Stability Included
- Extra Long 72″ Ramps Standard
- Precise Platform Leveling Accuracy
- Separate Self-Contained Control Panel
- Emergency Manual Pump for Lowering
- 19 Locking Positions
- CE Certified
- Can be Surface Mounted or Flush Mounted
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 5,000 lb.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
RJ-6
- 6,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- Double Screw-Up Adapters Included
- 4 Piece Truck Adapter Set Included
- 1 Year Parts Only Warranty
Specifications
| Atlas® 12ASL 12,000 LB Alignment Scissor Lift Specifications |
| |
| |
| Lifting Capacity | 12,000 LB |
| Lifting Height | 84 1/4" (7' 1/4") |
| Overall Width | 86 3/8" (7' 2 3/8") |
| Overall Length with Approach Ramps | 250" (20' 10") |
| Overall Length without Approach Ramps | 197" (16' 5") |
| Approach Ramp Length | 53" (4' 5") |
| 4-Wheel Alignment Wheelbase | Max. 168 in.
Min. 90 in.
|
| 2-Wheel Alignment Wheelbase | Max. 172 in.
Min. 86 in. |
| Runway Width | 23 3/4" (1' 11 3/4") |
| Lowered Height | 11 1/2" |
| Locking Positions | 19 |
| Width Between Runways | 39" |
| Motor/Electrical Requirement | 220 volt +/- 5% (209-231volts) single (1) phase.
A 30 amp breaker is required. |
| Shipping Weight | 5000 lbs. |
| Atlas® RJ-6 Rolling Jack Specifications |
| Maximum Width | 64 1/2" |
| Minimum Width | 30 1/2" |
| First Locking Position | 7 1/4" |
| Second Locking Position | 15" |
| Minimum Pad Height | 3 1/2" |
| Maximum Lifting Height | 17 5/8" |
| Maximum Capacity | 6,000 LB. |
| Recommended Operating Air Pressure (PSI) | 70-105 PSI |
| Shipping Weight | 350 LB. |
Documents
Atlas® 12ASL-N Manual
