Atlas 9KBPX 9,000 lb Baseplate 2 Post Lift

Atlas 9KBPX 9,000 lb Baseplate 2 Post Lift

SKU ATEXH-9KBPX
Availability:
In Stock & Ready To Ship
$2,899.00 - $2,899.00
$2,899.00
$2,899.00 - $2,899.00
$2,899.00
Call/Text Us: 307-218-7550
Live Chat With An Expert

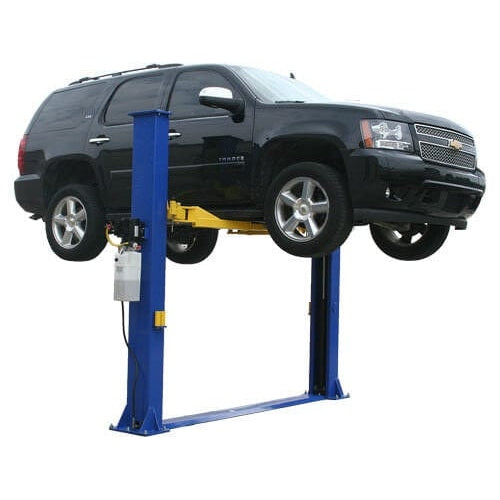

Atlas Baseplate 9,000lb. Capacity 2-Post Lift

The Atlas 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 (9 feet 3 inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas 9KBPX chain over roller lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for Mr. Homeowner or small commercial shop looking to service cars, SUVs and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

Features

  • 9,000 lb. Capacity
  • Baseplate, Open-Top Style Lift
  • Designed For Low Ceiling Clearance 9' 3 Columns
  • Symmetric Arms
  • Dual Hydraulic Chain-Drive Cylinders
  • Secondary Lock System (SLS)
  • Free 8 Piece Truck Adapter Set
  • Automatic Arm Restraints
  • Dual Point Lock Release
  • Mounting Hardware Included
  • Shipping Weight: 1,400 lbs.
  • 2 yr Structural 1 yr Hydraulic Warranty Parts Only

Atlas XH-9KBPX Specifications

Capacity 9,000 LB.
Overall Height 111 1/2" (9 3 1/2")
Overall Floor Width 134 1/2" (11 2 1/2")
Outside Column to Outside Column 124 7/8" (10 4 7/8")
Maximum Lift Height (Without Adapters) 74 1/2"
Maximum Lift Height (With Adapters) 81"
Minimum Arm Height 4"
Inside Column 110 (9 2)
Drive Thru 101 (8 5)
Column Size 7 1/4" x 11"
Column Thickness of Steel 5mm
Base Of Lift 14 1/4" x 18 1/4"
Motor/Electrical Requirement 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,400 LBS.
Adapter Heights 4 Each 1.5, 5
Arm Hole/Adapter Peg Size 1.5
Requires a minimum of 4" of concrete with a 3000 psi. rating

Documents

Atlas 9KBPX Manual

Atlas 9KBPX Cylinder Bleeding Procedure (Do this immediately after installation)
