Description
The Atlas® Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.
The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.
The Atlas® Platinum PVL14 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.
This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

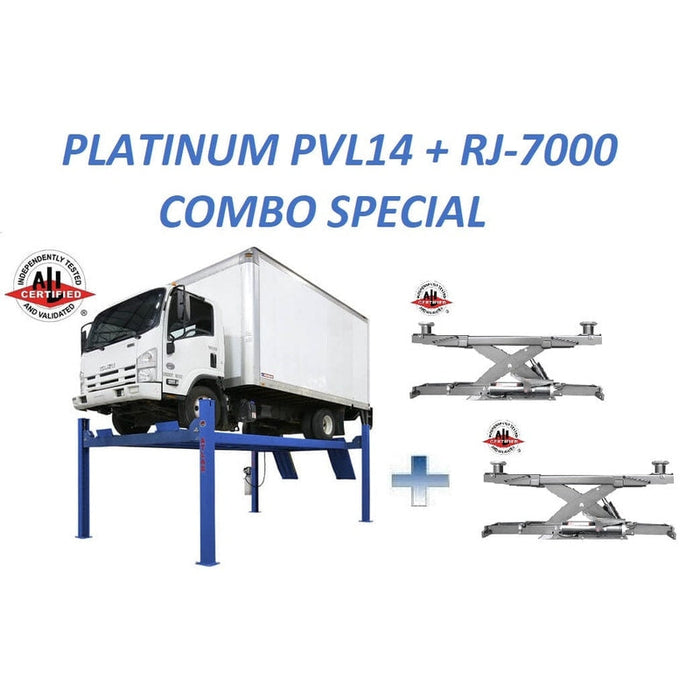

This combo package also includes two of the popular ALI Certified Atlas® Platinum RJ7000 Rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
PLATINUM PVL14
- ALI Certified Lift
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Adjustable Lock Ladder Design
- Higher Quality Powder Coat Finish
- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)
- Shipping Weight: 2,800 lbs.
- 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty
PLATINUM RJ7000
- 7,000 lb. Capacity
- Air/Hydraulic Operated
- Two Safety Lock Positions
- Double Screw-Up Adapters Included
- Compact Size with Low Profile
- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 1 Year Parts Only Warranty
Specifications
| Atlas® Platinum PVL14 Specifications |
| Capacity | 14,000 lb. |
| Lifting Height | 76 1/2" (6' 4 1/2") |
| Overall Width Of Columns (Without Motor) | 131 3/4" (10' 11 3/4") |
| Overall Width Of Columns (With Motor) | 140 1/2" (11' 8 1/2") |
| Overall Length With Approach Ramp | 251 1/2" (20' 11 1/2") |
| Length Between Columns | 196" (16' 4") |
| Runway Length | 205 1/2" (17' 1 1/2") |
| Runway Width | 20" |
| Thickness Of Runway | 7" |
| Width Between Runways | 42 3/4" (w/ Rail 39 1/4") |
| Outside Runway To Outside Runway | 83 1/8" (6' 11 1/8") |
| Clearance Under Runways | 69 1/2" (5' 9 1/2") |
| Clearance Between Columns | 116 3/8" (9' 8 3/8") |
| Height Of Columns | 92 1/2" (7' 8 1/2") |
| Maximum Wheel Base | 195" (16' 3") |
| Drive Thru | 94 1/2" (7' 10 1/2") |
| Air Requirement | 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement | 220 volt single (1) phase.
A 30 amp breaker is recommended |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 2,800 LBS. |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
| Atlas® Platinum RJ7000 Specifications |
| Maximum Capacity | 7,000 lb. |
| Maximum Width | 45 1/2" (3' 9 1/2") |
| Minimum Width | 36" (3') |
| Distance Between Runway Capability | 36"- 45" |
| Maximum Lifting Height (With Adapters) | 27 1/2" (2' 3 1/2") |
| Air Requirement | 70-115 PSI |
| Shipping Weight | 400 lbs. |
| Double Screw-Up Adapter Pad | 1 1/2" - 4" |
Documents
Atlas® Platinum PVL14 Manual
Atlas® Platinum RJ7000 Manual
