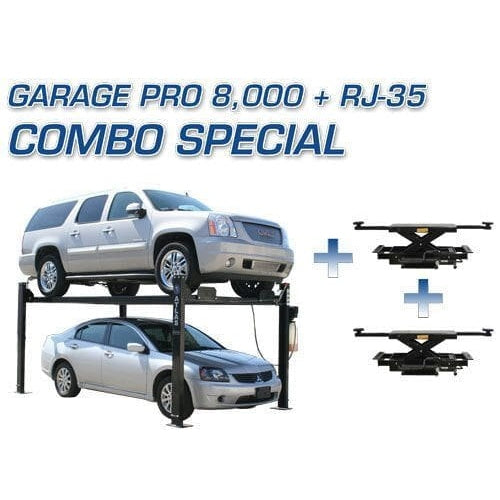

Atlas PRO8000 4 Post Lift + RJ35 Sliding Jacks Combo

Atlas PRO8000 4 Post Lift + RJ35 Sliding Jacks Combo

SKU ATEXH-PRO8-COMBO
Availability:
In Stock & Ready To Ship
$6,749.00 - $6,749.00
$6,749.00
$6,749.00 - $6,749.00
$6,749.00
Call/Text Us: 307-218-7550
Live Chat With An Expert

Description

The Atlas® Garage PRO8000 is our most popular 4-post hobbyist lift. Perfect for the customer with too many cars and not enough space. The Garage PRO8000 allows the user to easily double their space by stacking most passenger cars.

The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application, please contact a salesperson.

This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Features

PRO8000

  • 8,000 lb. Capacity
  • Free Standing/Portable Design
  • Diamond Plated Runways
  • Single-Point Lock Release
  • Lock Ladder Design
  • Double Lock Safety System
  • Caster Kit With Polyurethane Wheels Included
  • Steel Approach Ramps Included
  • Steel Jack Tray Included
  • 4 Plastic Drip Trays Included
  • 4 Wheel Stops Included
  • 2 Rubber Wheel Chocks Included
  • Perfect For Storing Or Working On Vehicles
  • 110volt Electric Operation (30 AMP BREAKER REQUIRED)
  • Shipping Weight 1,800 lbs.
  • 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

PROJACK35

  • Sliding Bridge Jack
  • Capacity: 3,500 lbs.
  • Manual, hand pump operated
  • Scissor mechanism allows for level lifting
  • Low Profile, Compact Design
  • Adjustable Width to fit many 4-post lifts
  • Adjustable Lift Arms to reach many lifting points
  • Multiple Safety Lock Positions
  • 4 Piece Truck Adapter Set Included
  • 1 Year Parts Only Warranty

Specifications

Atlas® Garage Pro 8,000 Specifications
Capacity 8,000 LB
Lifting Height To Top Of Runway 72" (6')
Clearance Under Runways 67 ½" (5' 7 ½")
Height of Columns 83" (6' 11")
Overall Width (Without Motor) 104 ½" (8' 8 ½")
Overall Width (With Motor) 115" (9' 7")
Overall Length with Approach Ramps 206 ¾" (17' 2 ¾")
Overall Length without Approach Ramps 175 ½" (14' 7 ½")
Approach Ramps 36 3/8" (3' 3/8")
Runway Width 18 ½" (1' 6 ½")
Runway Length 165 ¾" (13' 9 ¾")
Runway Thickness 4 ½"
Width Between Runways 37" (3' 1")
Width Between Runway Rails 31 ½" (2' 7 ½")
Outside Runway to Outside Runway 74 5/8" (6' 2 5/8")
Size of Column 6 1/4" x 3 3/8"
Clearance Between Columns 94 ½" (7' 10 ½")
Length Between Columns 157 ½" (13' 1 ½")
Base of Column 10 1/8" x 11 3/4"
Maximum Wheel Base 153 ½" (12' 9 ½")
Drive Thru (Outside of tire to outside of tire) 80 ½" (6' 8 ½")
Cable Diameter .350"
Gauge Of Steel 6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor 110 Volt. A 30 amp breaker is required.
Shipping Weight 1,720 LB.



Locking Positions Under Runway
(+/ - 2")		 Locking Positions Top Of Runway
(+/ - 2")
19 ½" 24"
25 ½" 30"
31 ½" 36"
37 ½" 42"
43 ½" 48"
49 ½" 54"
55 ½" 60"
61 ½" 66"
67 ½" 72"



Atlas® RJ-35 Sliding Jack Specifications
Capacity 3,500 LB.
Minimum Width 29 1/2"
Minimum Width with Arms In 39 1/2"
Maximum Width with Arms Out 64 3/4"
Working Width 31" - 47"
Minimum Height with Lift Pad 3 1/2"
Lifting Pad 1 3/8"
Short Adapter 1 1/4"
Tall Adapter 5"
Raised Height without Adapter 11"
Raised Height with Small Adapter 12 1/4"
Raised Height with Large Adapter 16"
Raised Height with Small and Large Adapter 17 1/4"
Shipping Weight 350 LBS.

Documents

Atlas® Garage Pro 8,000 Manual
