Katool C9372 Brake Lathe Machine

Katool C9372 Brake Lathe Machine

by Katool
SKU KT-C9372
Availability:
In Stock & Ready To Ship
$5,559.00 - $5,559.00
$5,559.00
$5,559.00 - $5,559.00
$5,559.00
Call/Text Us: 307-218-7550
Live Chat With An Expert

Description

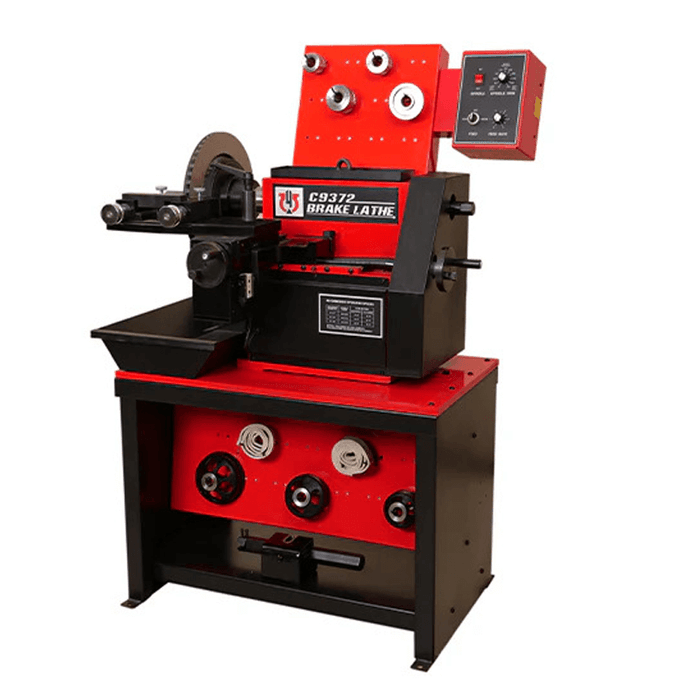

The Katool C9372 Combination Disc and Drum Brake Lathe is a versatile and robust machining tool designed to handle a wide range of rotor and drum dimensions, making it an essential addition to any automotive workshop.

Features

  • Versatile Machining Capabilities: Accommodates rotor diameters from 4" to 20" (102-508mm) and drum diameters from 6" to 19.5" (152-500mm), allowing for a broad range of applications.

  • Adjustable Feed Rates: Infinitely adjustable feed rates enable precise control over cutting speeds, ensuring optimal finish quality for both rough cuts and fine finishes.

  • Quick Changeover Design: A convenient design allows for rapid transitions between rotor and drum machining, enhancing operational efficiency.

  • Automatic Stop Function: Features an automatic stop position after cutting, promoting safety and streamlining workflow.

  • Comprehensive Adapter Package: Includes a fully equipped adapter package to accommodate various brake components, expanding service capabilities.

Specifications

  • Rotor Diameter: 4”-20” (102-508mm)
  • Maximum Rotor Thickness: 2.85” (73mm)
  • Drum Diameter: 6”-19.5” (152-500mm)
  • Drum Depth: 6.5” (165mm)
  • Flywheel Diameter: 6”-24” (152-610mm)
  • Spindle Weight Capacity (Standard 1” Arbor): 150 lbs (68 Kg)
  • Spindle Speed: 70-320 RPM
  • Feed rates - Rotor and Drum: 0”-0.026” (0mm-0.66mm)
  • Feed Rates Per Minute: 2.54” (64.5mm)
  • Shipping Weight: 661.3 lbs / 300 KG
  • Motor: 110V/220V 50/60HZ
  • Dimensions: 43.3 x 28.7 x 28.3 inches / 1100 x 730 x 720mm

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
