Katool KT-299U Auto Body Frame Machine

Katool KT-299U Auto Body Frame Machine

by Katool
SKU KT-299U
Availability:
In Stock & Ready To Ship
$9,000.00 - $9,000.00
$9,000.00
$9,000.00 - $9,000.00
$9,000.00
Call/Text Us: 307-218-7550
Live Chat With An Expert

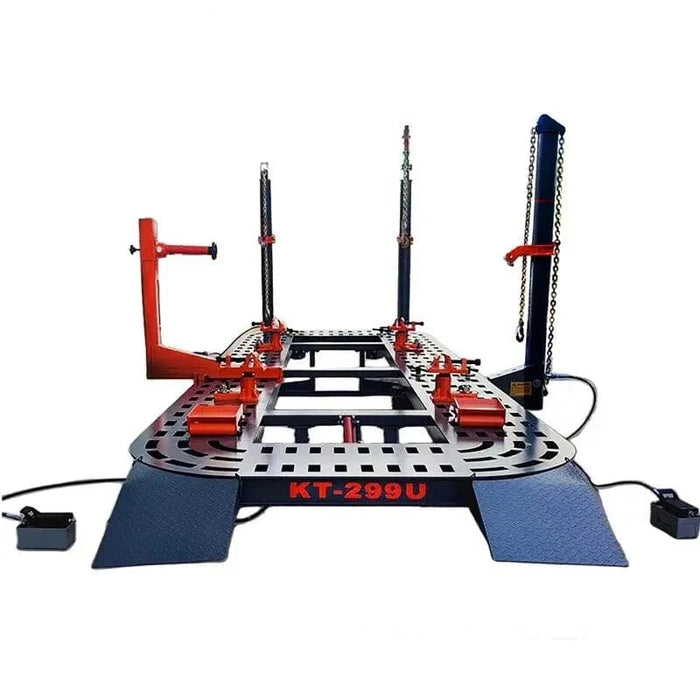

The Katool KT-299U Auto Body Frame Machine is a powerhouse for efficient and precise auto body repairs. This machine features a pulling tower with an impressive 10 tons pulling capacity, ensuring robust performance.

The positioning slot eliminates dead spots, providing accurate and seamless positioning. Powered by a pneumatic pump with high pressure, it delivers reliable and efficient operation.

Crafted with high-quality manganese steel, utilizing CNC plasma cutting, CO2 welding (Panasonic), shot blasting, and power coating, this machine is built for durability and longevity. The tilt hydraulic lifting platform enhances versatility, while the towers, made of 10mm seamless steel pipe, can rotate 360 degrees along the platform, offering exceptional maneuverability.

The unique design of spiral movements for main clamps adds precision to the repair process. All accessories and tools undergo multi-heating and forging processes, ensuring their durability and effectiveness

Features

  • Pulling tower With 10 tons pulling capacity
  • Positioning slot to position without dead spot
  • Pneumatic pump with high-pressure
  • High-quality manganese steel, CNC plasma cutting, CO2 welding(Panasonic), shot blasting and power coating
  • Tilt hydraulic lifting platform
  • Towers made of 10mm seamless steel pipe can be rotated 360 degrees along the platform
  • Unique design of spiral movements for main clamps
  • All accessories and tools had gone through multi-heating and forging processes.

        Specifications

        Length 256.1 Inch
        Width 86.68 Inch
        Height 4.3 to 67 Inch
        Pulling Capacity 100 KN
        Rated Voltage 220V
        Radius of Pulling 360 Degrees
        Air Supply Required 0.8 MPA
        Max Loading Capacity 7700 lbs (CE Certified)

        Warranty

        Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

        A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

        Warranty Includes:
        - Cylinders, power units, motors, displays, electronics, etc.
        - Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

        Warranty Conditions:
        - Claims must fall within the warranty period.
        - Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
        - Replacement parts will be provided at no cost, including free shipping.

        Note:
        - All warranty claims are subject to approval by the warranty/service department.
        - Photos and/or videos of defects may be requested.
        - Do not disassemble any equipment before the issue is determined.
        - Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
        - Labor is not included in the warranty.
